INNOVV RC6

RC6 With Dashcam & ThirdEYE

Features at a Glance:

✔ 2-in-1 Safe Riding System
✔ Dual Channel Camera System
✔ Storage Capacity: up to 256GB TF card
✔ 77-79GHz Millimeter Wave Radar
✔ 50 Meters, 150° Surveillance Range
✔ Waterproof Rate: IP67

This is the world's first dual safety system for motorcycles, combining a 77GHz radar with dual-channel 2K+1080P cameras.
The camera system records events, while the radar system helps prevent accidents by alerting you when your attention drifts. This integrated motorcycle safety device enhances overall security, allowing you to remain aware of your riding environment while the RC6 provides additional safety features.

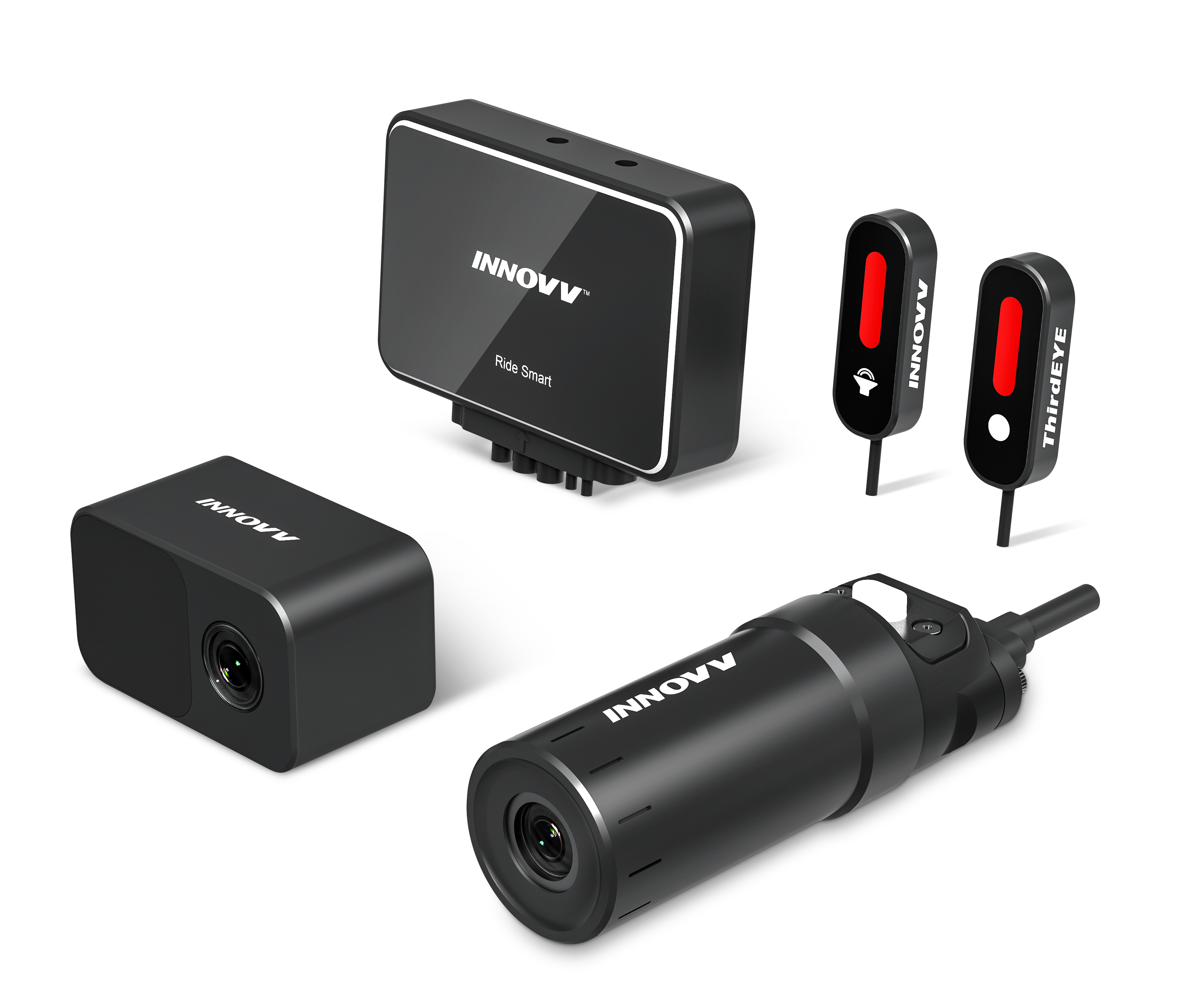

INNOVV RC6 CAMERA & RADAR SYSTEM

• in-1 Safe Riding System: Combines video recording and blind spot detection.

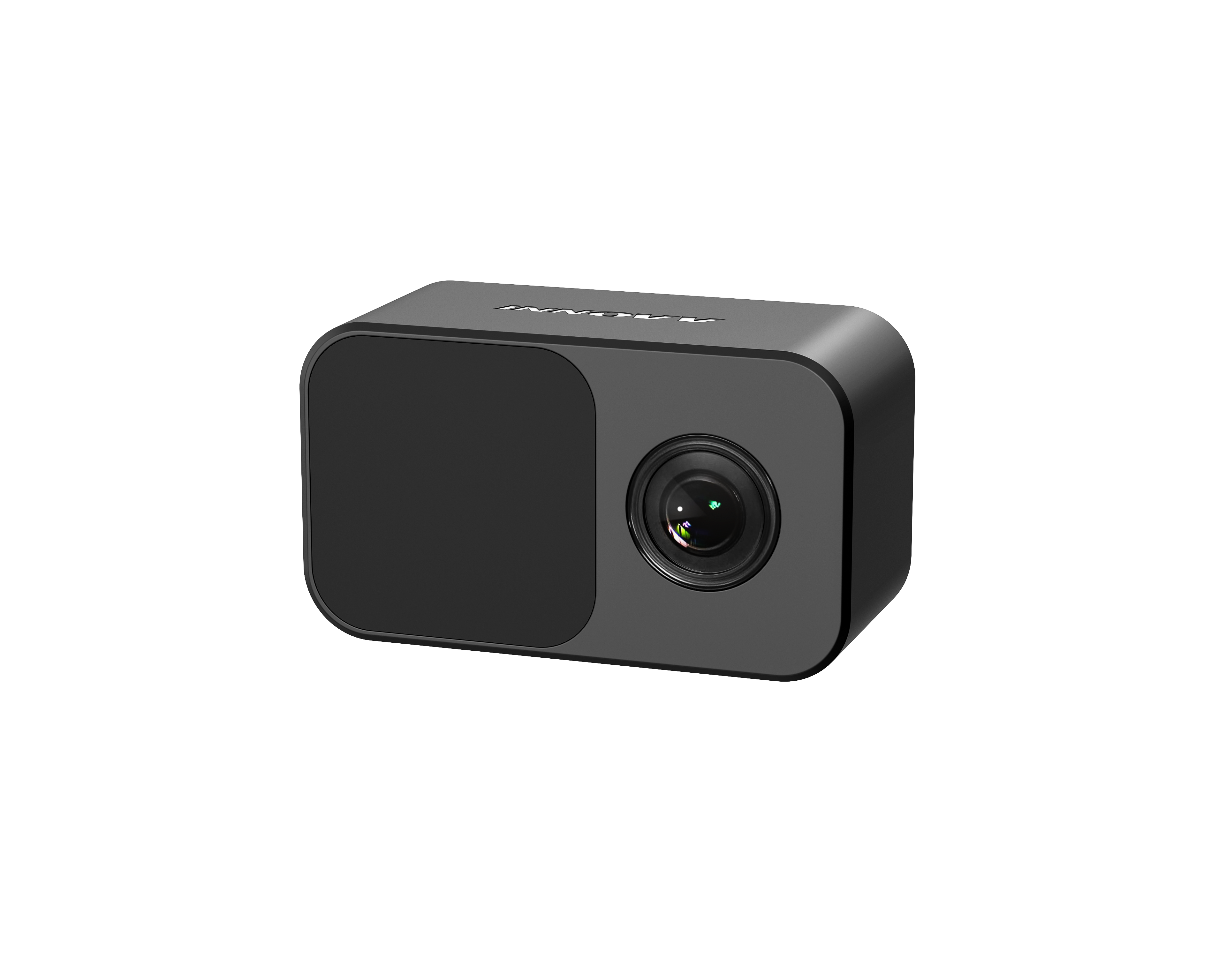

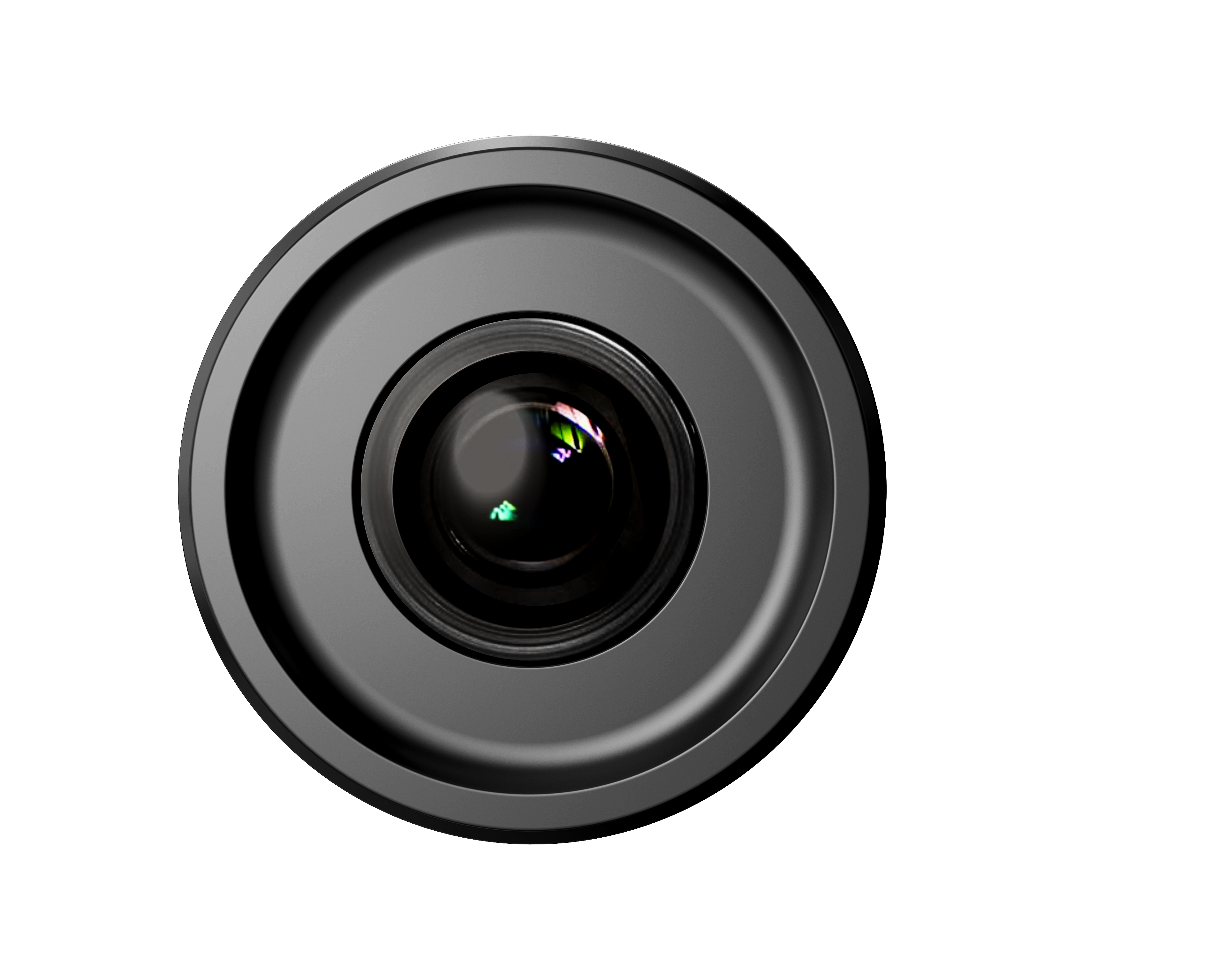

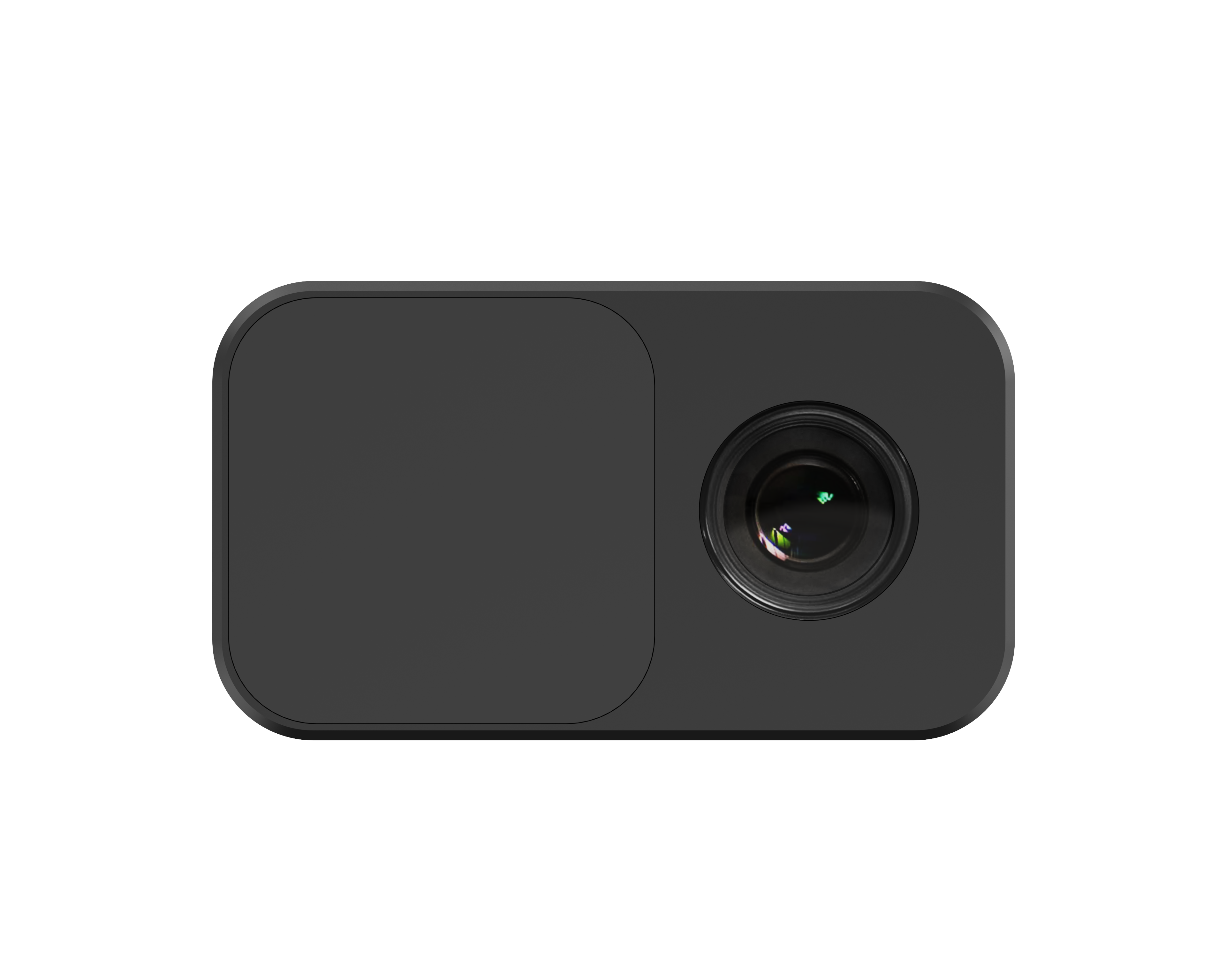

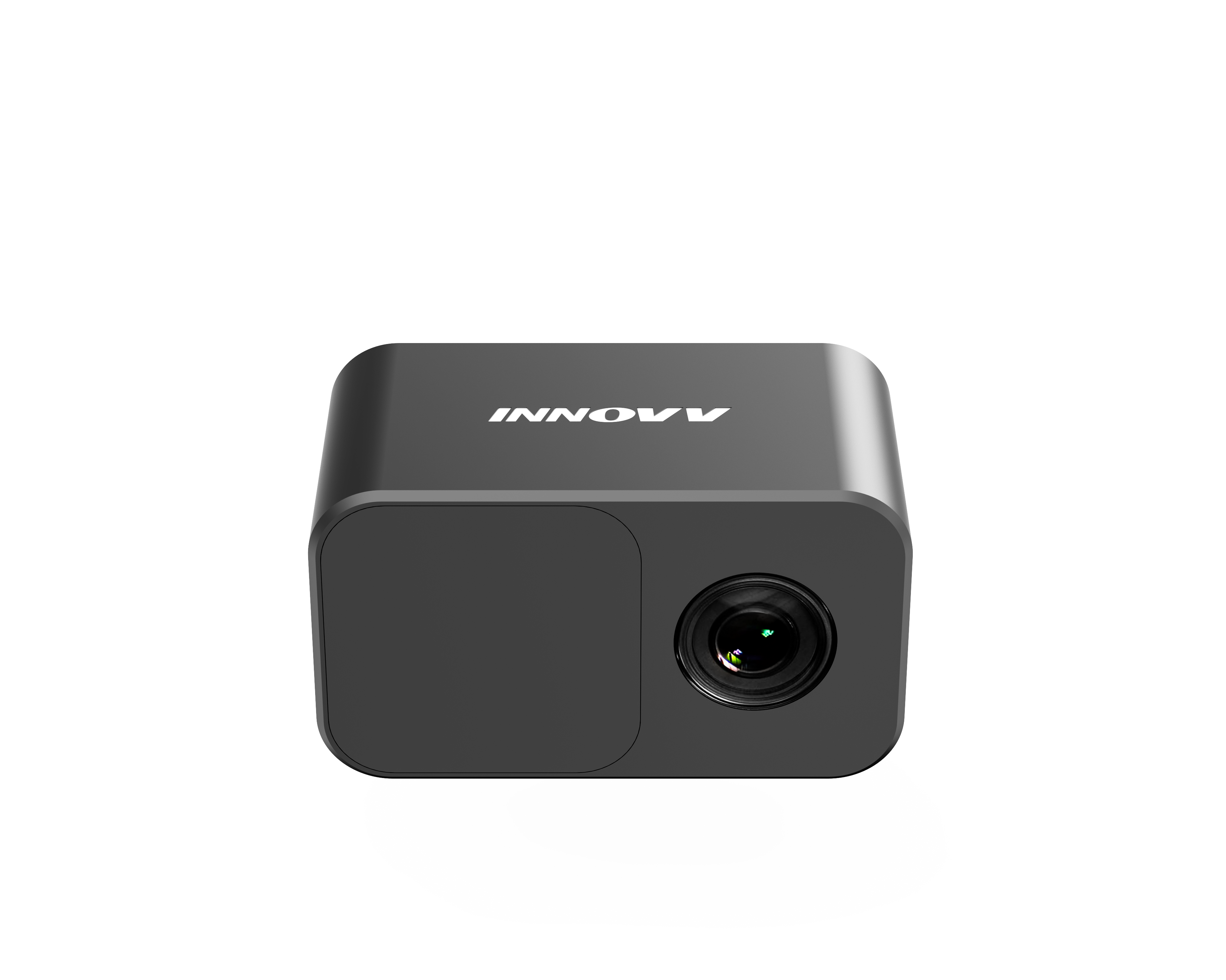

High Definition Camera

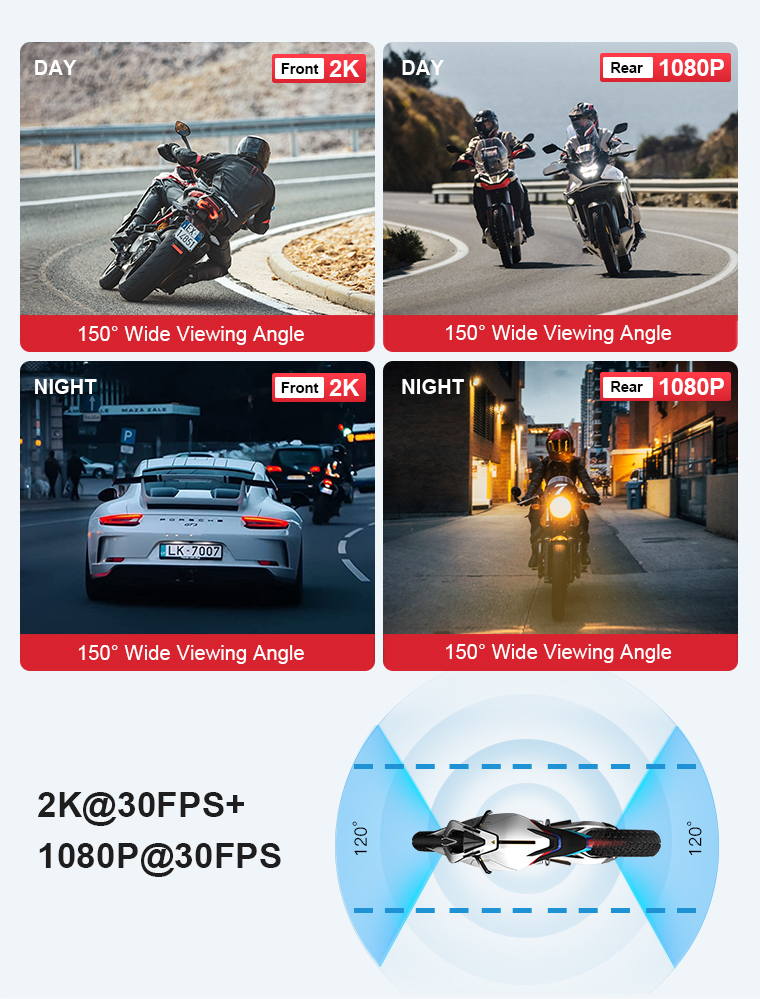

Dual 2K 30FPS and 1080P 30FPS cameras with F2.0 aperture lenses provide clear, low-distortion images.

Chips for cameras - what type of chips are used - what are the advantages of this chip?

The Sony IMX 307 is a high-performance CMOS image sensor featuring 2.13 million effective pixels and a resolution of

1920 x 1080. Its exceptional low-light performance and dynamic range enable it to excel in complex lighting conditions.

Storage Capacity: up to 256G SD card

With dual-camera output, a 128GB memory card supports recording over 10 hours of video at high bitrate in 2K 30FPS and 1080P 30FPS, and over 13 hours at low bitrate. A 256GB memory card can record over 20 hours of video at the same high bitrate, and over 26 hours at low bitrate.

Efficient encoding

H.265 encoding technology saves storage space.

77-79GHz Millimeter Wave Radar

Motorcycles have limited space for installing large 24 GHz radar modules, making the more advanced, compact 77-79 GHz radar modules the preferred choice for INNOVV. The 77-79 GHz radar offers higher detection accuracy due to its shorter wavelength, resulting in more precise target identification and distance measurement. It also has stronger interference resistance, better weather adaptability, and improved performance in adverse conditions like rain and fog. Additionally, the smaller antenna size is ideal for space-constrained applications like motorcycles. With advanced signal processing capabilities, 77-79 GHz radar can achieve faster target tracking and analysis, making it increasingly popular in autonomous driving, traffic monitoring, and smart transportation systems.

50 Meters, 150° Surveillance Range

77-79GHz millimeter wave radar covers 50 meters, 150° surveillance range, and can detect up to 64 targets simultaneously.

Faster 2.4G Wi-Fi Compared to Other Protocols

The RC6 features 2.4G Wi-Fi based on the 802.11n protocol, with a maximum transmission speed of up to 150 Mbps in the 2.4G frequency band.

*Please note that actual transmission speeds may be affected by environmental factors, interference, and distance, potentially resulting in lower speeds than the theoretical maximum.

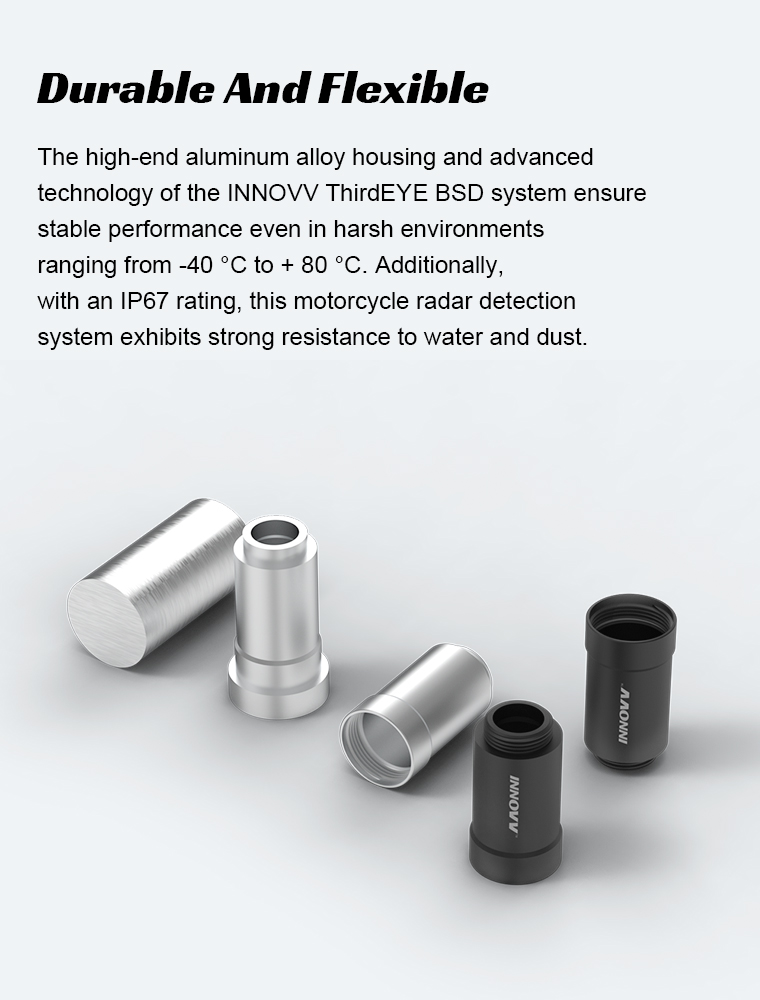

Durable And Flexible

The high-end aluminum alloy housing and advanced technology of the INNOVV ThirdEYE BSD system ensure stable performance even in harsh environments ranging from -40 °C to + 80 °C. Additionally, with an IP67 rating, this motorcycle radar detection system exhibits strong resistance to water and dust.

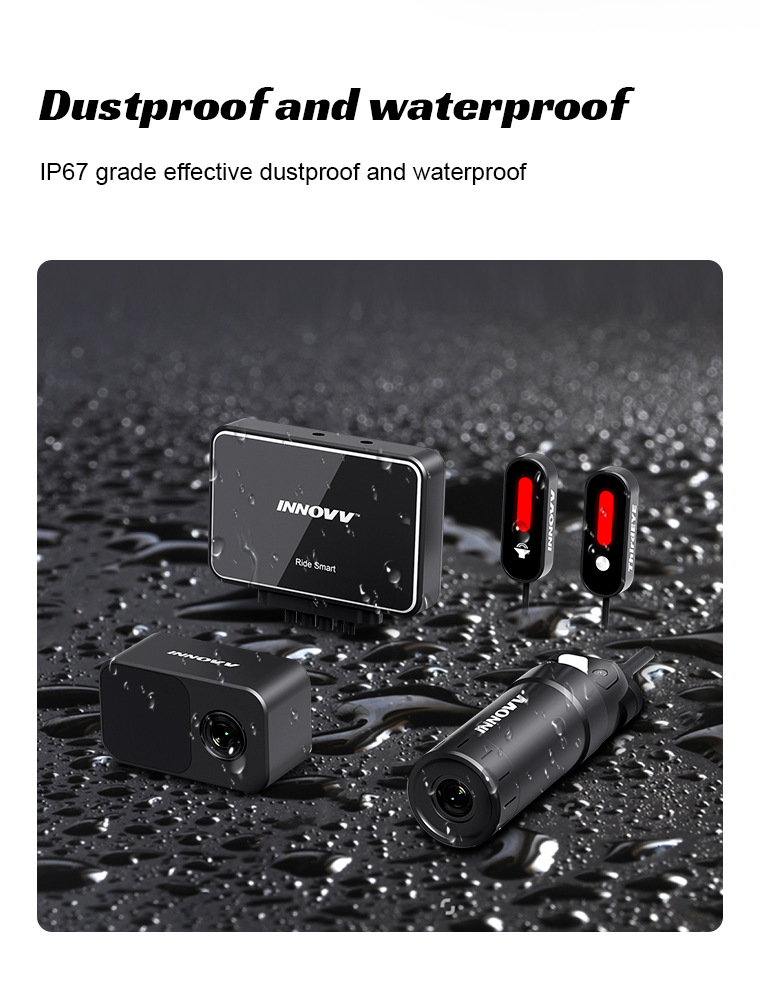

Waterproof Rate: IP67

IP67 is a protection rating defined by the International Electrotechnical Commission (IEC) standard 60529, indicating that a device has complete dust protection (level 6) and can withstand immersion in water up to 1 meter deep for a maximum of 30 minutes (level 7). Therefore, devices with an IP67 rating effectively prevent dust ingress while providing good water resistance under specific conditions.

All-weather radar performance

Dual Safety System Compared to the Single Safety System

Choosing the integrated RC6 saves you installation time and space, allowing you to achieve the functionality of two products with the time and effort required to install just one.

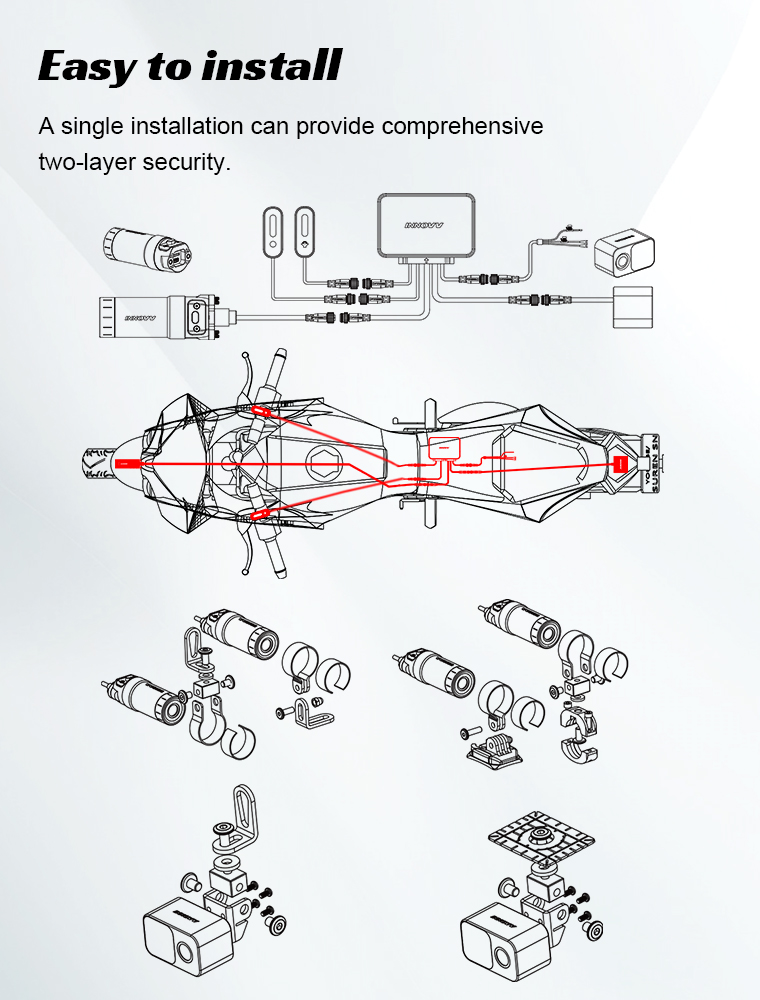

Easy to install

A single installation can provide comprehensive two-layer security.
